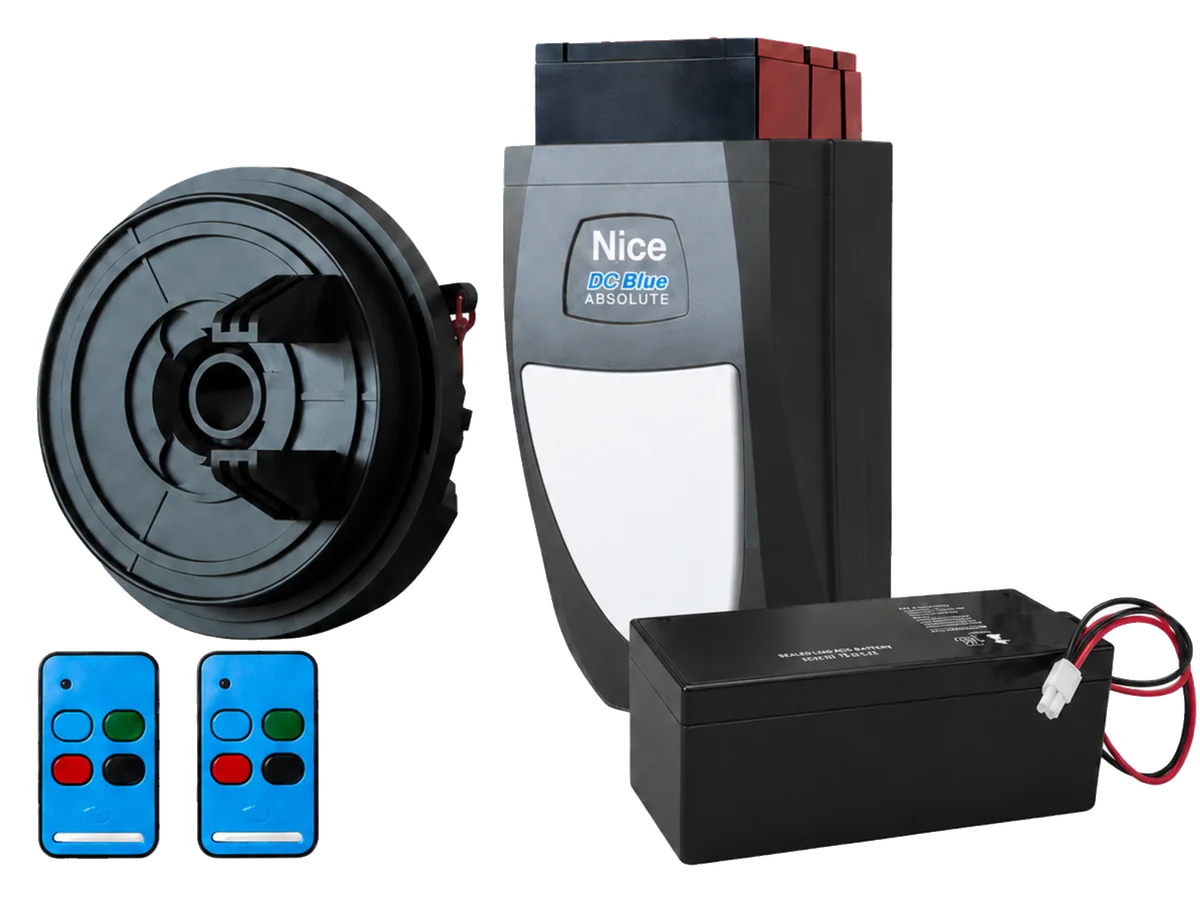

Nice DC Blue Absolute

Product code0606110386197

Roll-up garage door operator with Absolute encoder positioning and built-in battery back-up.

The Nice DC Blue Absolute is a compact, battery-backed operator for spring-balanced roll-up garage doors up to 8 m². Its Absolute encoder tracks the true door position without mechanical end-stoppers, so the door always opens and closes to the same point — even after a power failure. The rugged DC motor keeps working through load-shedding, while the on-board ET-Blu Mix rolling-code receiver, 400 lumen courtesy light and safety-beam auto-close make it a complete, ready-to-fit kit.

Residential
Garage Automation

Key features

Absolute encoder memorises the exact open and closed limits — no physical end-stoppers
Rugged, reliable DC motor with battery back-up for load-shedding
Compact design for tight roll-up door installations
Auto-close for extra security when Blue-i safety beams are fitted
Unhackable, uncrackable on-board ET-Blu Mix® rolling-code receiver
Bright 400 lumen courtesy light
Built-in charger supports lithium and sealed lead-acid batteries

Request priceconfirmed at quote

Specifications

Applicable door types	Spring-balanced, one-piece Aluzinc or Chromadek roll-up doors
Maximum door size	8 m²
Maximum lifting force	35 kgf
Maximum drum revolutions	137
End-of-travel limits	Determined by Absolute encoder — no end-stoppers
Operating speed	130 – 165 mm/s
Input voltage	220 – 240 V AC, 50 Hz
Electric motor supply	24 V DC battery
Maximum operations per day	25 full cycles per 24 h (max. 5 per hour)
Battery charger compatibility	LiFePO4 with BMS, Lithium-ion with BMS, SLA (AGM, GEL & Crystal)
Battery charger rating	350 mA @ 27.6 V (9.6 W)
Operations on battery reserve	Approx. 50 within 48 h of a mains failure
Courtesy light	Built-in 400 lumen LED
Built-in receiver	433.92 MHz — ET-Blu Mix® and ET Blue formats
Receiver memory	31 transmitters, up to 4 buttons each
Receiver functions	Button trigger, courtesy light, aux relay trigger*, holiday lock-out
Door forced-open alarm	Yes* (with optional E-Coms module and magnetic reed switch)
