Nice Drive 300
Product code6009228499959
Compact 24 V sliding gate operator for light residential gates — complete standard kit.

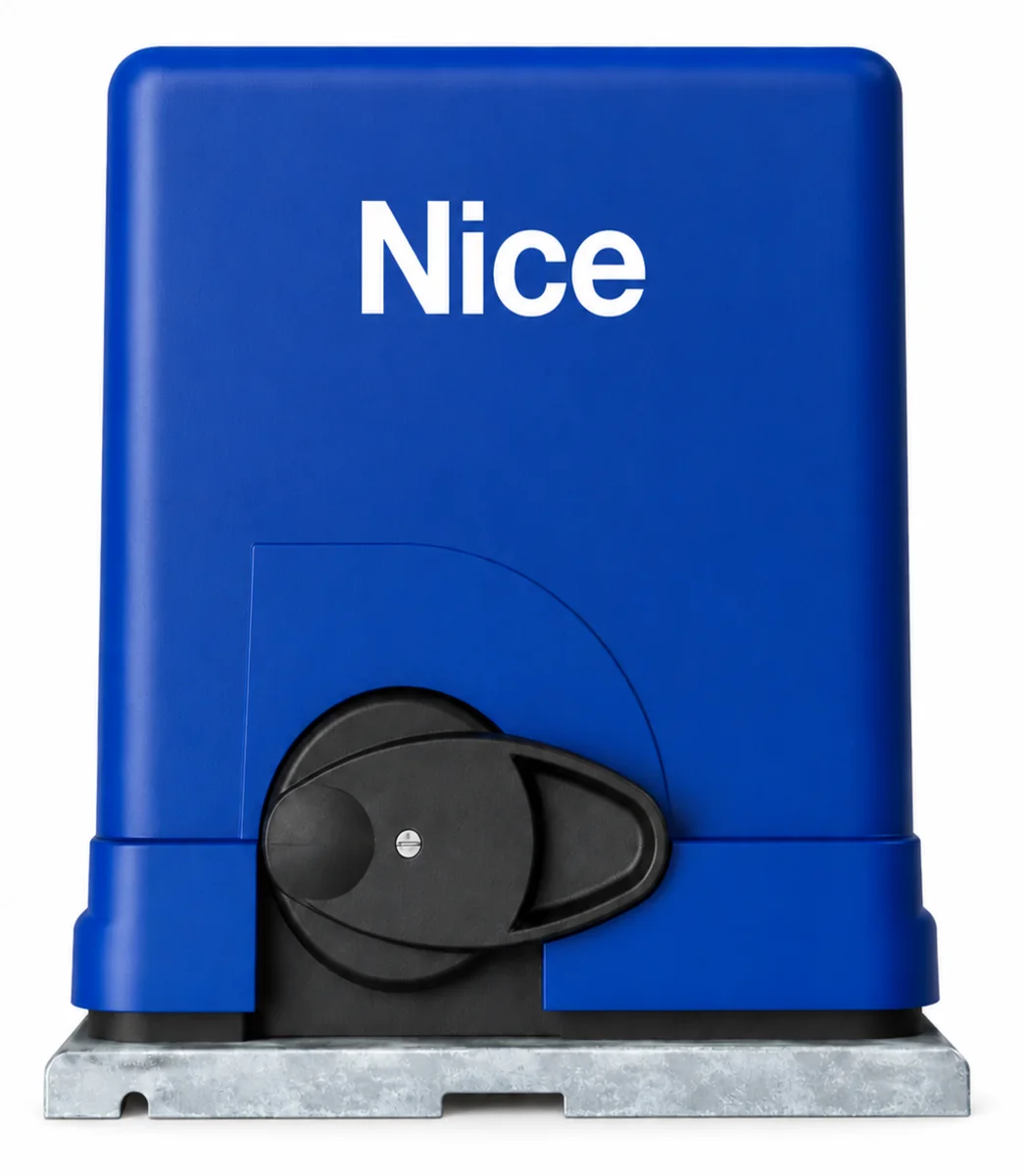

Nice Drive is a range of 24 V electromechanical operators for sliding gates. The Drive 300 is sized for residential gates up to 300 kg, with soft start / soft stop, obstacle detection and integrated control logic. Battery backup is available as an accessory. The Nice Standard Kit packs the operator with two ET-Blu Mix remotes, a back-up battery and two rack lengths, so an installer has everything needed for a typical driveway gate.
- Residential
- Gate Automation
Key features
- Cost-effective automation for light residential sliding gates
- Tough DC motor with removable brushes for easy servicing
- LED display for straightforward programming and diagnostics
- ET-Blu Mix® enhanced rolling-code receiver on board
- Complete kit — operator, remotes, battery and rack in one box
Request priceconfirmed at quote
Specifications
| Max gate weight | 300 kg |
| Maximum gate leaf length | 25 m |
| Rated gate speed | 25 m/min |
| Supply voltage | 230 V AC |
| Motor voltage | 24 V DC |
| Duty cycle | Residential — intensive |
| Limit switches | Magnetic |
| Built-in receiver | 434 MHz, 4-channel ET-Blu Mix® rolling code — 32 users |
| Battery backup | Optional 24 V battery |

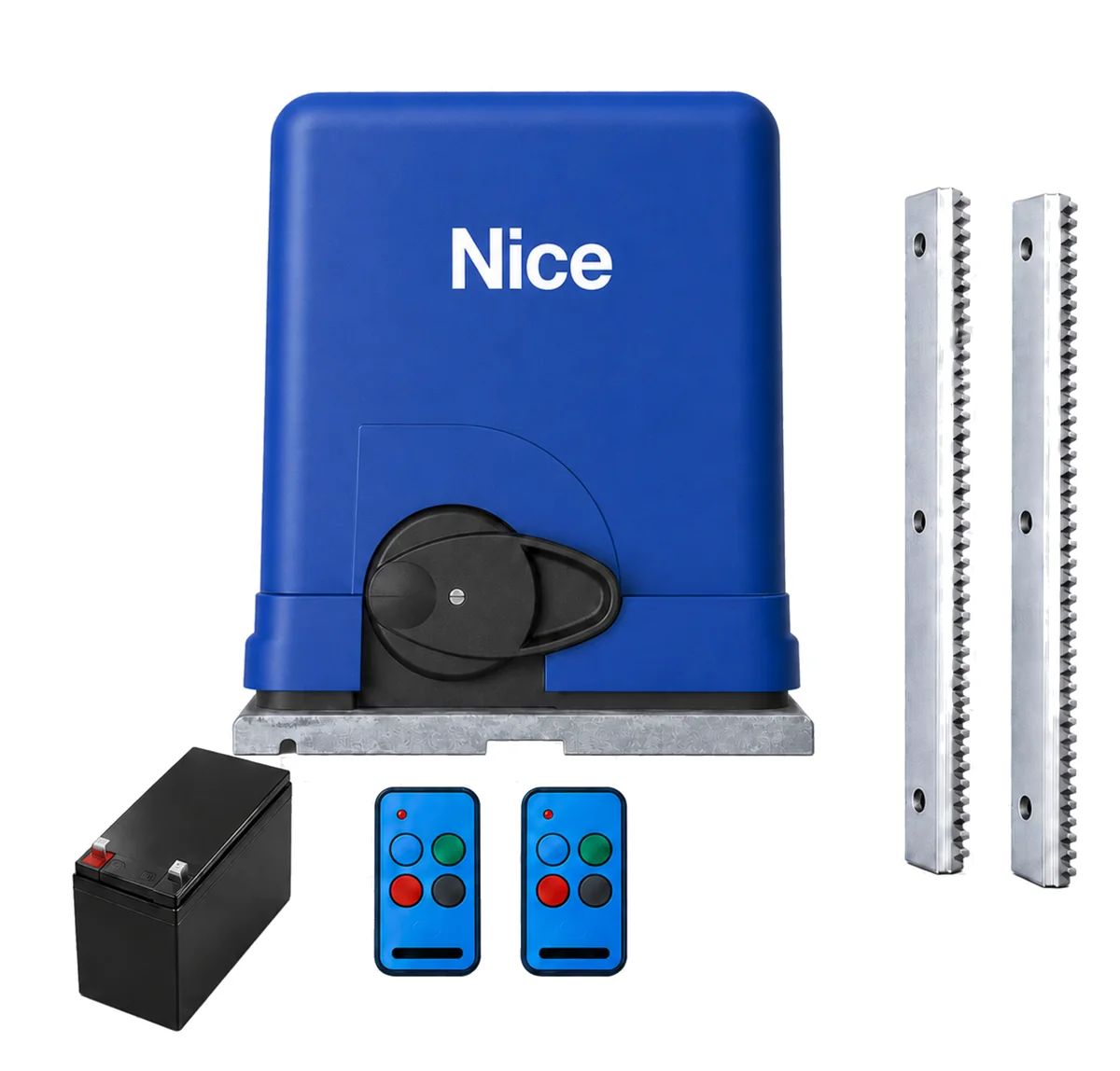

| Kit contents | Operator, 2 × ET-Blu Mix 4-button remotes, back-up battery, 2 × rack lengths (as pictured) |
Ideal applications
- Small residential sliding gates
- Townhouse complexes
Compatible with
- Residential sliding gates up to 300 kg
- Nice ET-Blu Mix 1, 2 and 4-button remotes
- Nice steel or nylon gate rack (extra lengths for longer gates)
- Nice Blue-i infrared safety beams
- Upgrade path: the Drive 300 Smart kit adds MyNice SmartGo app control
Compatible accessories
- • Toothed rack (per m)
- • Photocell safety beams
- • Remote transmitter
- • Backup battery
